Device Directory

Meters, sensors and controllers, and how each connects to Edge.

394 device pages · 121 manufacturers with device pages

398 devices

Device database results

398 devices

Netvox R718N3

Three-phase current meterLoRaWAN

A battery-powered LoRaWAN current meter with three solid-core current transformers, reading AC current on each phase from 100 mA to 50 A with 1 mA resolution. Edge reads its decoded uplinks from your LoRaWAN network server.

  • Energy meters
  • Current transformers

Manufacturer (opens in a new tab) (opens in a new tab)

Aqara SJCGQ11LM

Water leak sensorZigbee

A battery-powered Zigbee water leak sensor that sits on the floor and alarms when water reaches 0.5 mm across its probes, in an IP67 housing with a CR2032 cell Aqara rates for over two years. Edge reads it through the Gateway’s Zigbee radio.

  • Water leak

Manufacturer (opens in a new tab) (opens in a new tab)

Aqara SP-EUC01

Smart plug with energy meteringZigbee

A Schuko adapter plug that switches one appliance up to 10 A and 2300 W and reports its power and cumulative energy over Zigbee 3.0, with overload and overheat cut-off and a Zigbee router built in. Edge reads it through the Gateway’s Zigbee radio.

  • Smart plugs

Manufacturer (opens in a new tab) (opens in a new tab)

Aqara SRTS-A01

Radiator thermostatZigbee

Aqara’s Radiator Thermostat E1: a Zigbee 3.0 valve head for M30 × 1.5 mm valves, with RA, RAV and RAVL adapters in the box, a 5 to 30 °C setpoint, window detection and an input for a room temperature from another sensor. Edge reads it through the Gateway’s Zigbee radio.

  • Heating controls

Manufacturer (opens in a new tab) (opens in a new tab)

Aqara SSM-U01

Relay switch module with meteringZigbee

A small in-wall Zigbee 3.0 relay for loads up to 10 A and 2500 W resistive that needs a neutral, meters voltage, current, power and energy, and keeps an existing wall switch in use. Edge reads it through the Gateway’s Zigbee radio.

  • Smart plugs

Manufacturer (opens in a new tab) (opens in a new tab)

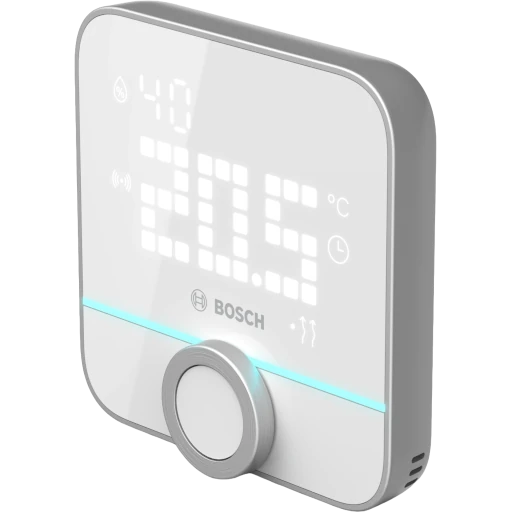

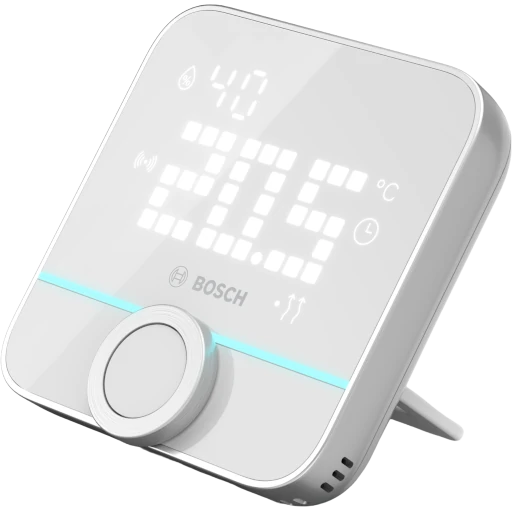

Bosch BTH-RM

Room thermostatZigbee

Bosch’s battery-powered Room Thermostat II is a Zigbee 3.0 wall unit that measures room temperature and humidity, holds heating and cooling setpoints from 5 to 30 °C and takes an optional 10 kΩ NTC probe, such as a floor sensor. Edge reads it through the Gateway’s Zigbee radio.

  • Heating controls

Manufacturer (opens in a new tab) (opens in a new tab)

Develco FLSZB-110

Water leak detectorZigbee

A battery-powered Zigbee water leak detector with an 85 dB siren and a built-in temperature sensor, sold as the frient Water Leak Detector. Edge reads it through the Gateway’s Zigbee radio.

  • Water leak
