From €899 ex VAT
EpiSensor hardware
Sensors and interfaces for what you measure, one Gateway per site, and Edge running on it. Buy online or ask for a quote.

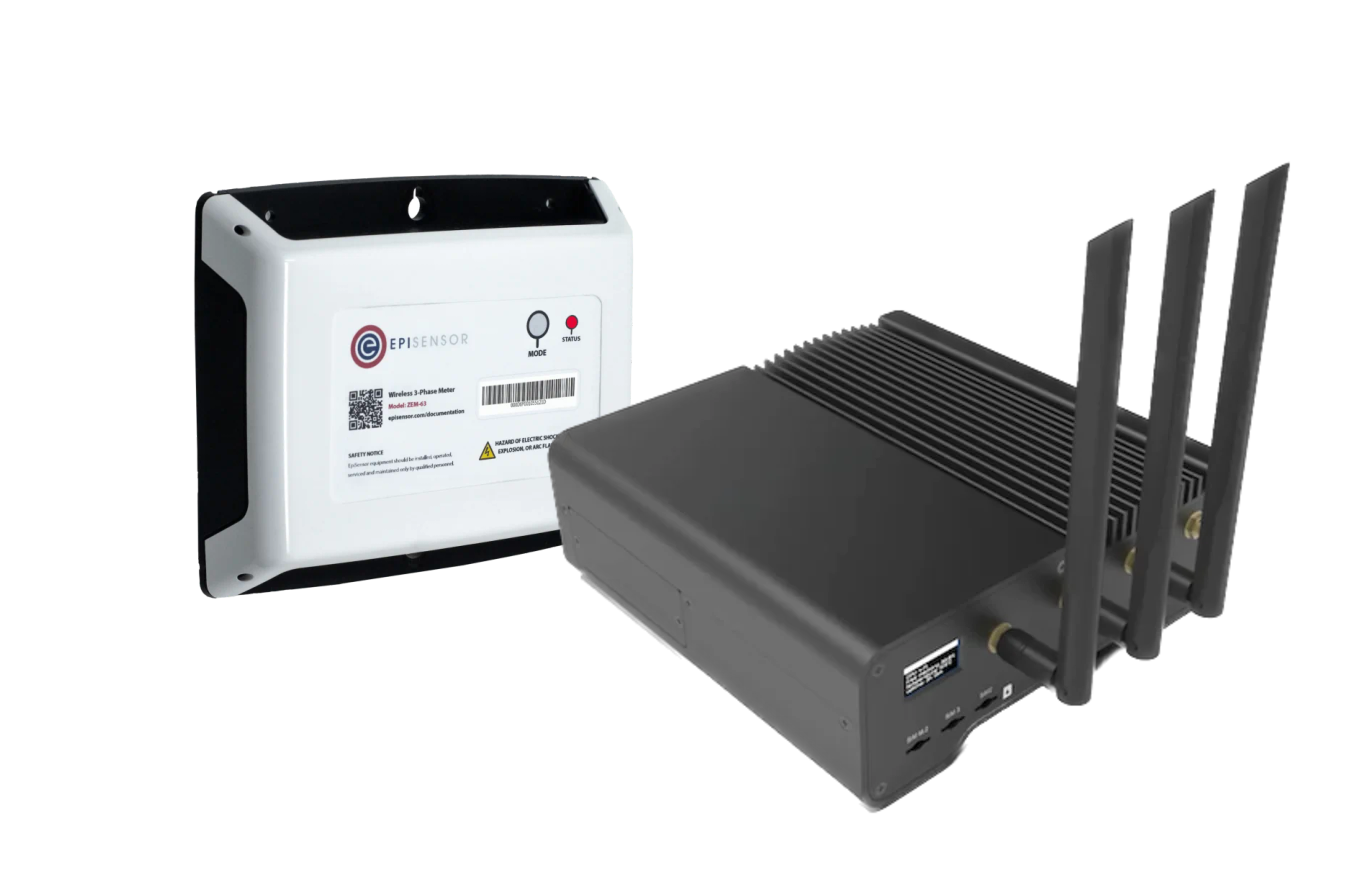

Start with the Gateway
Then the sensors
Filter by what you measure. Not sure which you need? Build a system maps your site to devices.
-
Wireless 3-Phase Electricity Monitor
ZEM-65
Three-phase metering to Class 0.5S, with the current sensors calibrated to the meter before it ships.
From €625 ex VAT€500 each at 100+
-
Demand Response Controller
ZDR-2X
Three-phase metering and a 100 ms frequency response in one controller, for demand response programmes.
From €2,897 ex VAT€2,317.60 each at 100+
-
Probe Temperature Sensor
TES-2X
Battery-powered wireless probes for pipes, cold stores and equipment, on one channel or two.
From €199 ex VAT€159.20 each at 100+
-
Pulse Counter
ZPC-2X
Counts the pulse output of an existing water, gas, heat or electricity meter, so the meter stays where it is.
From €229 ex VAT€183.20 each at 100+
-
Analogue Signal Sensor
ZIO-2X / ZVO-2X
Puts a 4-20 mA or 0-10 V instrument on the wireless network, with no cable back to a panel.
From €269 ex VAT€215.20 each at 100+
-
M-Bus Interface
ZHM-21
Reads one wired M-Bus heat, water or energy meter, and switches a valve through its relay.
From €499 ex VAT€399.20 each at 100+
-
Modbus Interface
ZMB-3X
Read and write Modbus RTU meters and controllers over RS-485 and send the registers to the Gateway wirelessly.
From €399 ex VAT€319.20 each at 100+

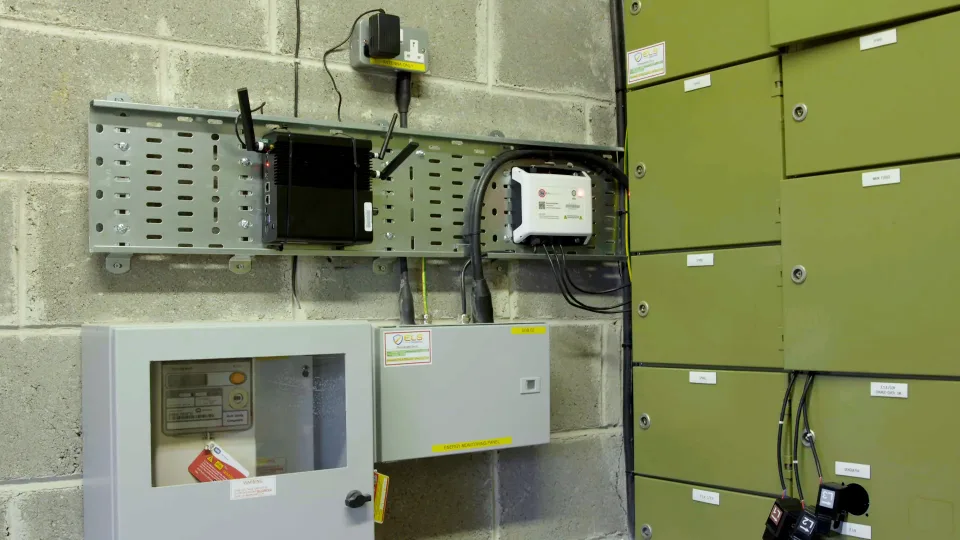

Built for real sites
Every EpiSensor device is built for plant rooms, switchboards and rooftops, and for estates that grow to thousands of devices. Why EpiSensor sets out what we design for, from mesh coverage to enclosures and documented measurement.
- Zigbee 3.0 mesh: every mains-powered device extends coverage, about 1,000 m² each.
- IP67 enclosures; the ZEM is double-insulated for mounting inside or outside a panel.
- Up to 70,000 readings stored on the device through a radio outage.
- AES-128 on the mesh, TLS 1.2 or later from the Gateway.

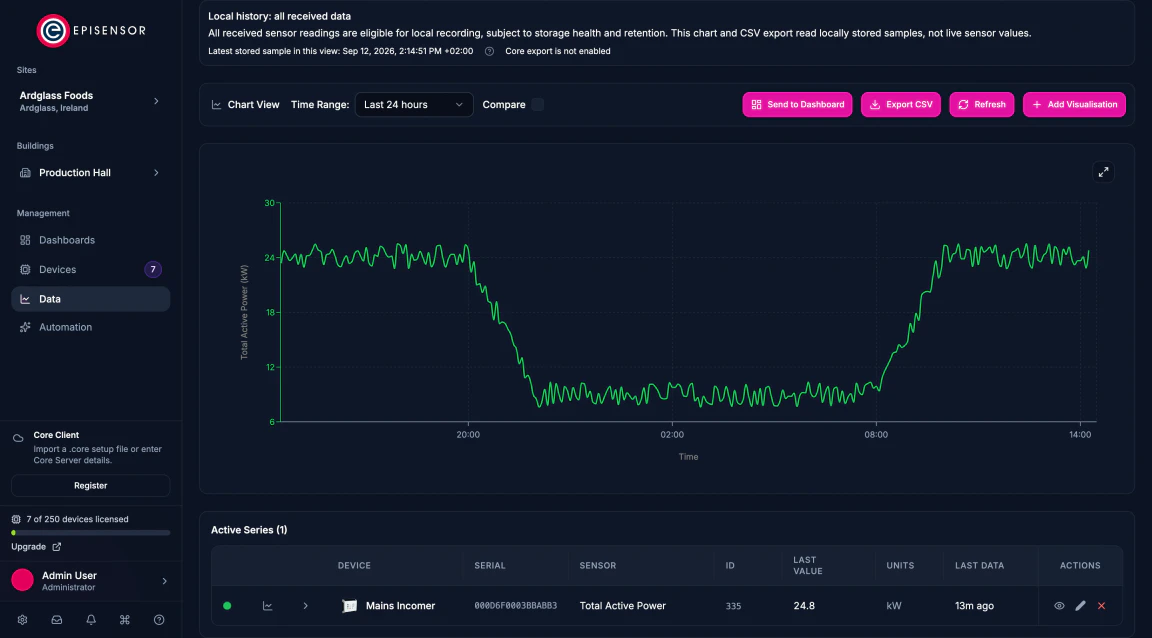

Sensors, one Gateway and Edge
Sensors report over Zigbee, and wired equipment over Modbus or BACnet, to one Gateway. Edge runs on it; platform connections are optional.
Documentation
The current datasheet for every product.
Datasheet
Wireless 3-Phase Electricity Monitor
Three-phase electricity monitor, Class 0.5S with its current sensors. Split-core CTs or Rogowski coils.
Datasheet
Demand Response Controller
Demand response controller with three-phase metering, grid-frequency monitoring, and a relay or Modbus set-point output.
Datasheet
Probe Temperature Sensor
Battery-powered temperature sensor with one or two external probes. IP67, probes IP68.
Datasheet
Pulse Counter
Pulse counter for water, gas, heat and electricity meters with a pulse output.
Datasheet
Analogue Signal Sensor
Analogue signal sensor for 4-20 mA and 0-10 V instruments.
Datasheet
M-Bus Interface
Reads one wired M-Bus meter and sends its energy, volume and temperature records to the Gateway over the wireless network.
Datasheet
Modbus Interface
Reads Modbus RTU devices over RS-485 and sends their registers to the Gateway.
Datasheet

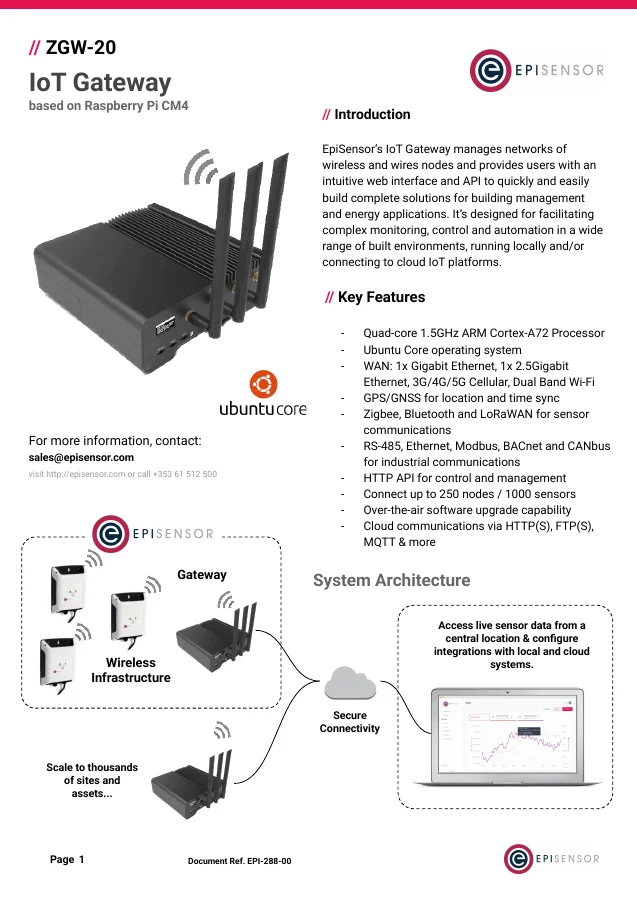

Gateway
Runs Edge on Ubuntu Core. Zigbee, Bluetooth and LoRaWAN radios, dual Ethernet, optional Cellular and GNSS, up to 250 devices.
