Janitza UMG 103
Power analyser
A 4-module DIN-rail power analyser that runs from the voltage it measures and reads 1 A or 5 A current transformers, with Class 0.5S energy on 5 A CTs and harmonics to the 25th. It has no display: you read it, and set it up, over its Modbus RTU port.
Compatibility
Compatible with EpiSensor Edge over Modbus RTU.
Connect its RS-485 port to a Modbus Interface or to a serial interface on the Gateway. Edge polls it with its Modbus client.
Edge reads 32 values from it, listed under Interface.
Connect it with
-
Modbus Interface ZMB-3XFrom €399 ex VAT Configure Modbus Interface
-
Gateway ZGW-20From €899 ex VAT Configure Gateway
Specifications

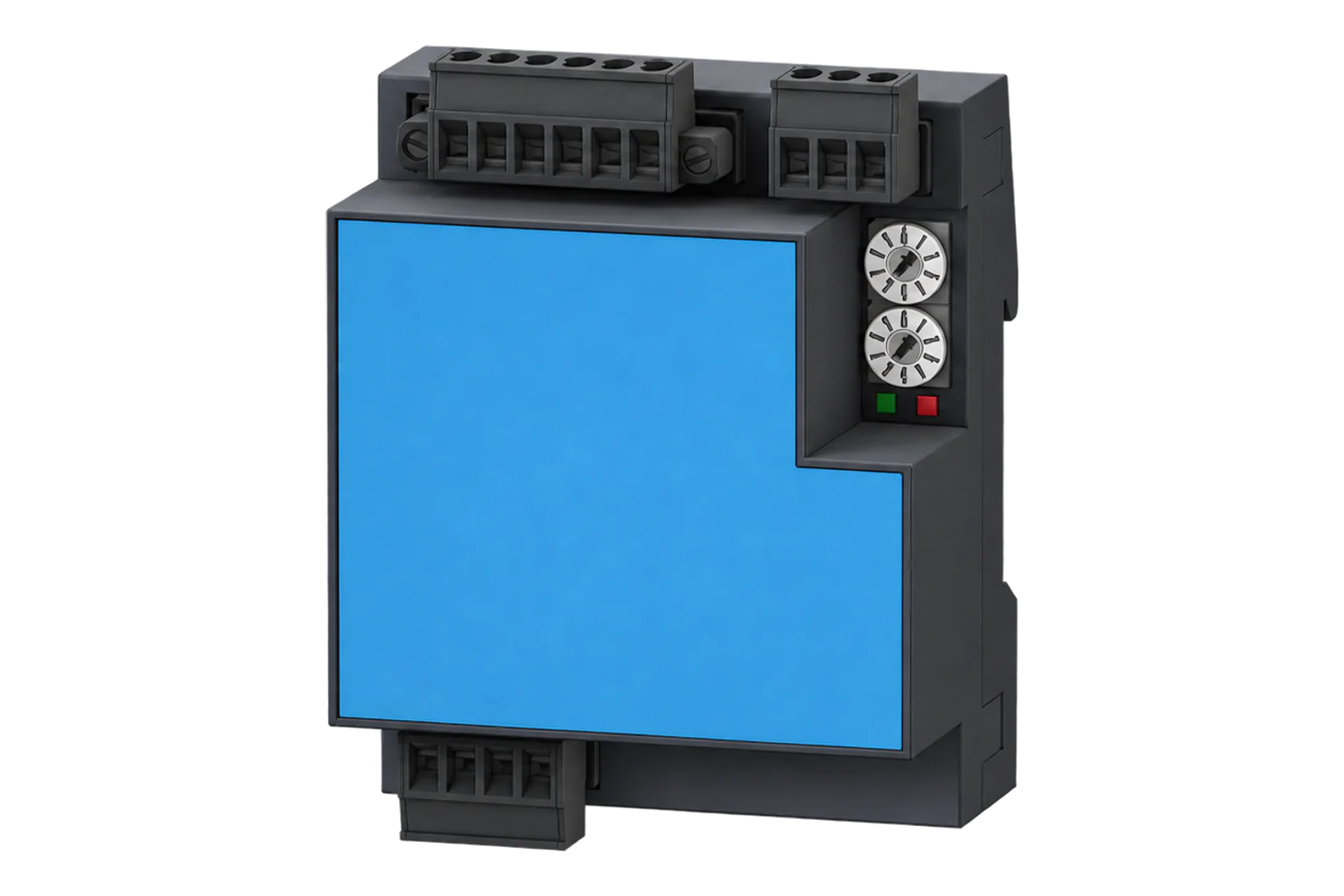

The UMG 103 is a compact power analyser from Janitza for building installations, distribution boards, circuit breakers and busbar trunking. It clips onto a 35 mm DIN rail in any position, takes four module widths and works in TN and TT systems. It measures up to 240 V phase to neutral directly, with voltage transformers above that, and reads current through x/1 A or x/5 A transformers or directly up to 5 A.1
- Power
- Self-powered from the measured supply. Taken from the L1-N, L2-N and L3-N measuring inputs: 115 to 240 V from one phase or 80 to 240 V from three phases (±10 %), 45 to 65 Hz, 4 VA at most. At least one phase must be above 100 V, and it rides through outages of up to 80 ms at 230 V.1
- Active energy accuracy
- Class 0.5S (EN 62053-22) and Class B (EN 50470-3) with x/5 A CTs; Class 1 and Class A with x/1 A CTs1
- Reactive energy accuracy
- Class 2 (EN 62053-23)1
- Measurement classes (IEC 61557-12)
- Voltage 0.2, current 0.5, active power 0.5, frequency 0.11
- Voltage inputs
- Up to 240 V L-N and 415 V L-L, 300 V CAT III1
- Current inputs
- x/1 A or x/5 A transformers, 5 A nominal, 6 A continuous1
- Harmonics
- Odd orders from the 1st to the 25th, voltage and current, with THD1
- Modbus address
- 1 to 99, on two rotary switches1
- Dimensions
- 71.5 × 98 × 46 mm, 150 g, 4 DIN modules1
- Protection
- IP201
- Operating conditions
- -25 to 60 °C, 5 to 95 % RH non-condensing1
Where it is used
Outgoing feeders and sub-distribution boards on existing 1 A or 5 A current transformers, where a small meter with no display is enough.
Transformer and distribution board monitoringHarmonic and THD monitoring on circuits with drives, UPS systems and IT loads.
Data centre power monitoring and PUE inputsAdding energy and power quality readings to a BMS or SCADA system through Edge.
Modbus meter integration for a BMS or SCADA system
Interface
This register map is for the UMG 103 (firmware 0.931+).
Communication settings
- Protocol
- Modbus RTU over RS-485, as a slave
- Baud rate
- 9600, 19200, 38400, 57600 or 115200 bit/s
- Data bits
- 8
- Parity
- None
- Stop bits
- 1 or 2
- Read functions
- FC03 and FC04
- Write functions
- FC06, FC16 and FC23
- Byte order
- Big-endian at the listed addresses
- Update rate
- Every 200 ms
- Read with
- FC04 (input registers)
- Word order
- High word first on every value
- Addresses
- Zero-based PDU addresses, as sent on the bus
From UMG 103 Modbus address list and formulary (firmware 0.931 and later)2.
Register map
| Point | Address | Hex | Format | Scale | Unit |
|---|---|---|---|---|---|
| Voltage L1-N | 19000 | 0x4A38 |
FLOAT32 | ×1 | V |
| Voltage L2-N | 19002 | 0x4A3A |
FLOAT32 | ×1 | V |
| Voltage L3-N | 19004 | 0x4A3C |
FLOAT32 | ×1 | V |
| Voltage L1-L2 | 19006 | 0x4A3E |
FLOAT32 | ×1 | V |
| Voltage L2-L3 | 19008 | 0x4A40 |
FLOAT32 | ×1 | V |
| Voltage L3-L1 | 19010 | 0x4A42 |
FLOAT32 | ×1 | V |
| Apparent Current L1 | 19012 | 0x4A44 |
FLOAT32 | ×1 | A |
| Apparent Current L2 | 19014 | 0x4A46 |
FLOAT32 | ×1 | A |
| Apparent Current L3 | 19016 | 0x4A48 |
FLOAT32 | ×1 | A |
| Neutral Current (vector sum) | 19018 | 0x4A4A |
FLOAT32 | ×1 | A |
| Active Power L1 | 19020 | 0x4A4C |
FLOAT32 | ×1 | W |
| Active Power L2 | 19022 | 0x4A4E |
FLOAT32 | ×1 | W |
| Active Power L3 | 19024 | 0x4A50 |
FLOAT32 | ×1 | W |
| Total Active Power | 19026 | 0x4A52 |
FLOAT32 | ×1 | W |
| Apparent Power L1 | 19028 | 0x4A54 |
FLOAT32 | ×1 | VA |
| Apparent Power L2 | 19030 | 0x4A56 |
FLOAT32 | ×1 | VA |
| Apparent Power L3 | 19032 | 0x4A58 |
FLOAT32 | ×1 | VA |
| Total Apparent Power | 19034 | 0x4A5A |
FLOAT32 | ×1 | VA |
| Reactive Power L1 | 19036 | 0x4A5C |
FLOAT32 | ×1 | VAr |
| Reactive Power L2 | 19038 | 0x4A5E |
FLOAT32 | ×1 | VAr |
| Reactive Power L3 | 19040 | 0x4A60 |
FLOAT32 | ×1 | VAr |
| Total Reactive Power | 19042 | 0x4A62 |
FLOAT32 | ×1 | VAr |
| Fundamental Power Factor L1 | 19044 | 0x4A64 |
FLOAT32 | ×1 | - |
| Fundamental Power Factor L2 | 19046 | 0x4A66 |
FLOAT32 | ×1 | - |
| Fundamental Power Factor L3 | 19048 | 0x4A68 |
FLOAT32 | ×1 | - |
| Frequency | 19050 | 0x4A6A |
FLOAT32 | ×1 | Hz |
| Active Energy Total L1-L3 | 19060 | 0x4A74 |
FLOAT32 | ×1 | Wh |
| Delivered Active Energy Total L1-L3 | 19076 | 0x4A84 |
FLOAT32 | ×1 | Wh |
| Apparent Energy Total L1-L3 | 19084 | 0x4A8C |
FLOAT32 | ×1 | VAh |
| Reactive Energy Total L1-L3 | 19092 | 0x4A94 |
FLOAT32 | ×1 | VArh |
| Inductive Reactive Energy Total L1-L3 | 19100 | 0x4A9C |
FLOAT32 | ×1 | VArh |
| Capacitive Reactive Energy Total L1-L3 | 19108 | 0x4AA4 |
FLOAT32 | ×1 | VArh |
The addresses on this page are Janitza's big-endian addresses, sent on the bus as they are. Janitza also publishes a little-endian copy of the list at a higher address; do not mix the two.2
The meter has no display to compare against. Check the first readings with a clamp meter or a panel meter on the same circuit.1
Edge template
This JSON file supplies the register map. Applying it to an existing meter replaces its sensor list while retaining the site connection, unit ID and enable state.
| Model | Connection | Points | Version | Updated | Download |
|---|---|---|---|---|---|
| UMG 103 | Modbus RTU over RS-485, as a slave | 32 | 1.0.0 | Download |
Downloads need a signed-in account with Edge download access.
Use the template in Edge
- Import the JSON file
On the target Gateway in Edge, open Settings, then Device Templates. Choose Import and select the downloaded JSON file. Confirm that the model and template name match your device.
- Load the map for your meter
In the Modbus device wizard, choose the site connection and unit ID, then use Load Template to select the imported map. For an existing device, apply the template to that exact model. Its connection, unit ID and enable state are retained.
- Test a reading
Use Test in the wizard and compare a known reading with the meter display. Check its unit, sign and scale, then confirm that timestamps keep advancing. These starter maps are read-only and leave exports off until you configure them.
Setup
-
Set the address
Turn the two rotary switches (tens and units) to a unique address from 1 to 99 before power-up. Address 00 starts the boot loader, not the meter.1
-
Wire the bus
Run shielded twisted pair from A and B to a ZMB-31 or the Gateway's serial interface, with up to 32 devices per segment and 1,200 m at 38.4 kbit/s. Fit 120 Ω resistors at both ends of the segment: the meter has none built in. Janitza says CAT cable is not suitable.1
-
Match Edge to the meter
Set Edge to 8 data bits, no parity and 1 or 2 stop bits, at any rate from 9600 to 115200 bit/s. The meter detects the baud rate itself.2
-
Set the CT ratio
The meter leaves the factory set to 5/5 A. Set the real primary and secondary current with GridVis over RS-485 before you trust any current, power or energy reading.1
-
Read one register
Import the template and read Voltage L1-N at address 19000 with function code 4. With no display on the meter, compare it with a handheld meter on the same supply.2
-
Enable the map
Once voltage, current and total power agree with your reference, enable the rest of the map and watch several fresh readings before you add exports or alarms.
