Instruments onto the network

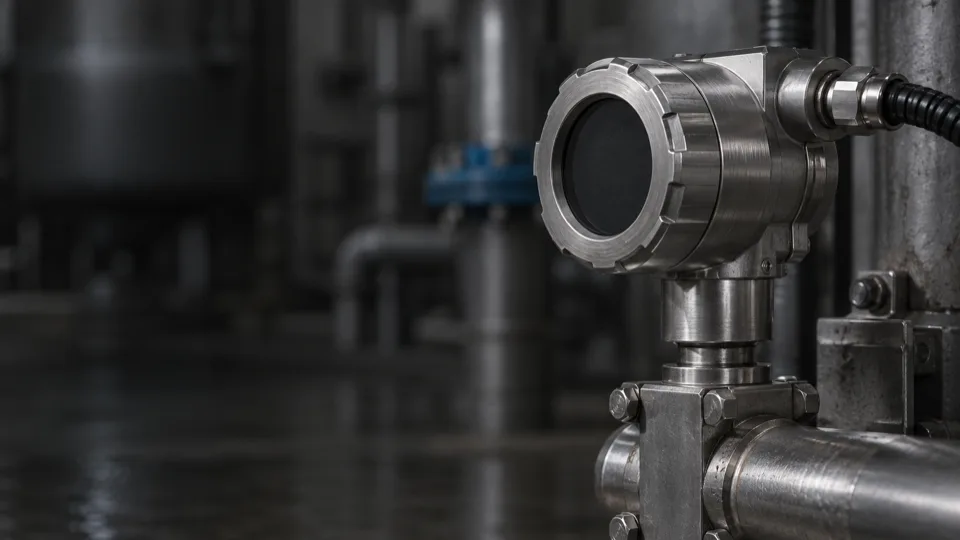

Connect a flow meter, pressure transmitter or pH sensor, and its reading reaches the Gateway over the wireless mesh.

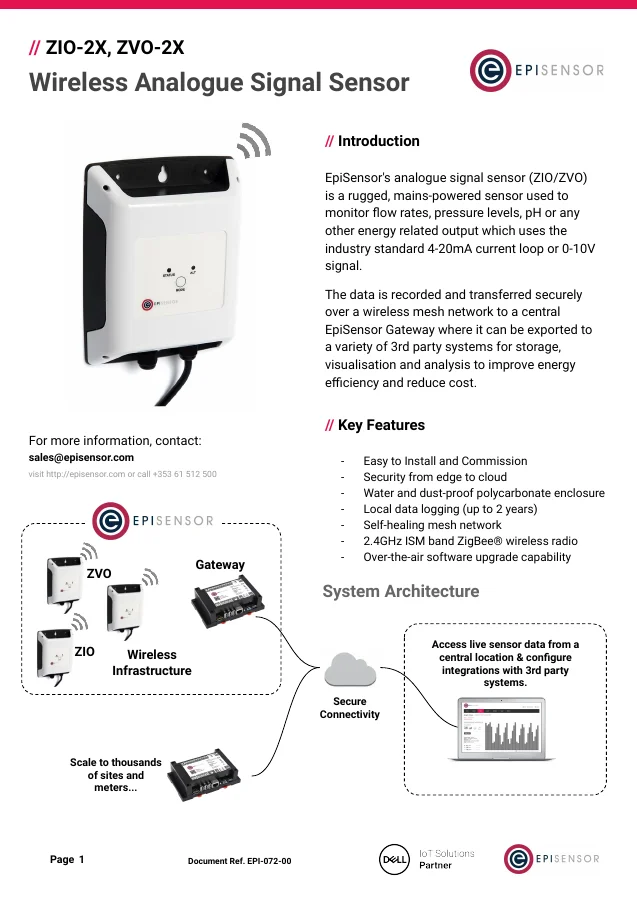

Analogue Signal Sensor
ZIO-2X / ZVO-2X
Puts a 4-20 mA or 0-10 V instrument on the wireless network. Flow, pressure and pH readings are measured to 0.001 mA or 0.001 V and sent over the Zigbee mesh to the Gateway, with no new cable back to a panel.
From €269 ex VAT
Works with the Gateway
Features
What it monitors
- Flow rate
- Pressure
- pH
- Other 4–20 mA outputs
- Other 0–10 V outputs
0.001 mA resolution on current-loop inputs
ZIO measures across 0–20 mA on externally powered loops, up to 36 V DC.
Current or voltage inputs
ZIO for 4–20 mA loops, ZVO for 0–10 V signals at 0.001 V resolution. Both come in single or dual channel.
Mains powered and sealed
An 85–264 V AC supply is built in, drawing 5 W at most, inside an IP67 polycarbonate enclosure.
Nothing lost in a radio outage
Up to 70,000 readings are kept in flash on the sensor, time-stamped, and sent when the link returns.
Configure and buy
Choose the options for your site. The summary shows the line that goes into your cart.
Not sure this is the right product for your site? Build a system
Works with
It reports over the Zigbee mesh to the Gateway, which runs Edge on site.
GatewayUp to 250 devices on one Gateway, with Edge pre-installed and no licence needed for EpiSensor devices.
Engineering tools
Used in
-
4-20 mA remote monitoring for process instruments
Current-loop and voltage instruments read by a mains-powered analogue signal sensor, with the range, the scaling and the fault current recorded beside the value. -
Chiller performance monitoring
Cooling output from a flow reading and a matched entering-and-leaving temperature pair, divided by the metered electrical input. -
Compressed air energy monitoring
Measure compressor electricity alongside delivered air and header pressure, then compare complete operating periods before deciding what to investigate. -
Pump performance monitoring
Motor electrical input, delivered flow and the pressure either side of the pump, so a drop in power can be explained rather than guessed at. -
Indoor environmental monitoring
A probe where people actually are, an outdoor reference to compare it with, and the ventilation state that explains the difference. -
Server room and rack temperature monitoring
Probes at the rack inlet and exhaust, a separate humidity transmitter, and each point’s position, history and alarms kept together in Edge.
6 more applications for this product
Questions engineers ask
ZIO or ZVO?
ZIO or ZVO?
Match the instrument’s output. A 4-20 mA transmitter takes a ZIO; an instrument with a 0-10 V output takes a ZVO. Both come with one channel or two.
Does the ZIO power the loop?
Does the ZIO power the loop?
No. The current input expects an externally powered loop of up to 36 V DC, so the transmitter needs its own loop supply.
How is the reading scaled to engineering units?
How is the reading scaled to engineering units?
The sensor measures the raw current or voltage, to 0.001 mA or 0.001 V. The range of the instrument (0 to 10 bar, say, for 4 to 20 mA) is set when the channel is commissioned.
What can I connect?
What can I connect?
Flow meters, pressure transmitters, pH sensors and any other instrument with a 4-20 mA or 0-10 V output.
What happens if the radio link drops?
What happens if the radio link drops?
The sensor keeps measuring and holds up to 70,000 readings in flash until the Gateway has them.
