Wired in, sealed up
Mains and valve wiring land on spring terminals through IP67 glands. The M-Bus lead is 2 m, and the bus can run to 1,000 m.
M-Bus Interface
ZHM-21
Reads one wired M-Bus meter, such as a heat or water meter, and sends its readings over the Zigbee mesh to the Gateway. The mains supply is on board, and a relay controls a valve.
From €499 ex VAT
Works with the Gateway
Features
Compatible meter makers
- Kamstrup
- Sontex
- Itron
- Diehl
- Elster
- Sensus
- Landis+Gyr
1,000 m maximum M-Bus cable length
One meter per ZHM, at any of six baud rates from 300 to 9,600.
Valve control built in
A Form C relay rated 1 A at 250 V AC switches a valve. It is not intended for large electrical loads.
Ready for tenant billing
Readings reach the Gateway over Zigbee, and Edge sends them on to billing or analysis software.
Integrated mains supply
Runs from 85–264 V AC at 5 W maximum, so there are no batteries to replace.
Configure and buy
Choose the options for your site. The summary shows the line that goes into your cart.
Not sure this is the right product for your site? Build a system
Works with
It reports over the Zigbee mesh to the Gateway, which runs Edge on site.
GatewayUp to 250 devices on one Gateway, with Edge pre-installed and no licence needed for EpiSensor devices.
Engineering tools
Used in
-

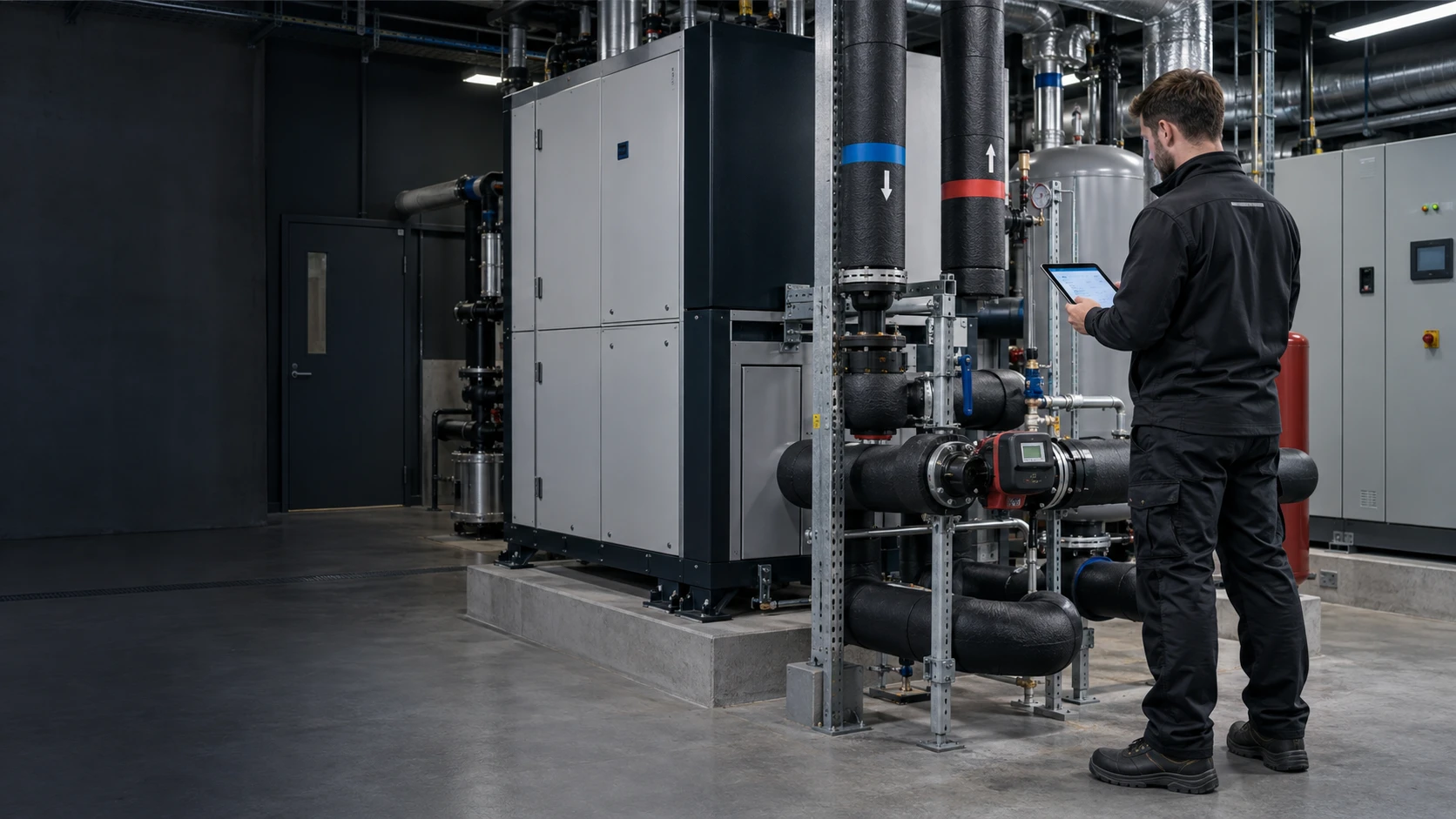

Heat pump performance monitoring
Read the heat meter over M-Bus, meter every electrical input, and compare COP over complete periods. -
Wired M-Bus heat meter integration
One M-Bus interface per meter reads the meter's own energy, volume and temperature records over wired M-Bus, and Edge keeps them with their timestamps. -
Boiler performance monitoring
A pulse counter on the fuel meter coming in, a heat meter on the way out, and the firing state that tells you which periods are worth comparing. -
Modbus meter integration for a BMS or SCADA system
A Modbus interface reads the meters and instruments on site, and Edge serves what it collects onward over Modbus TCP, MQTT or HTTP to the system that needs it. -

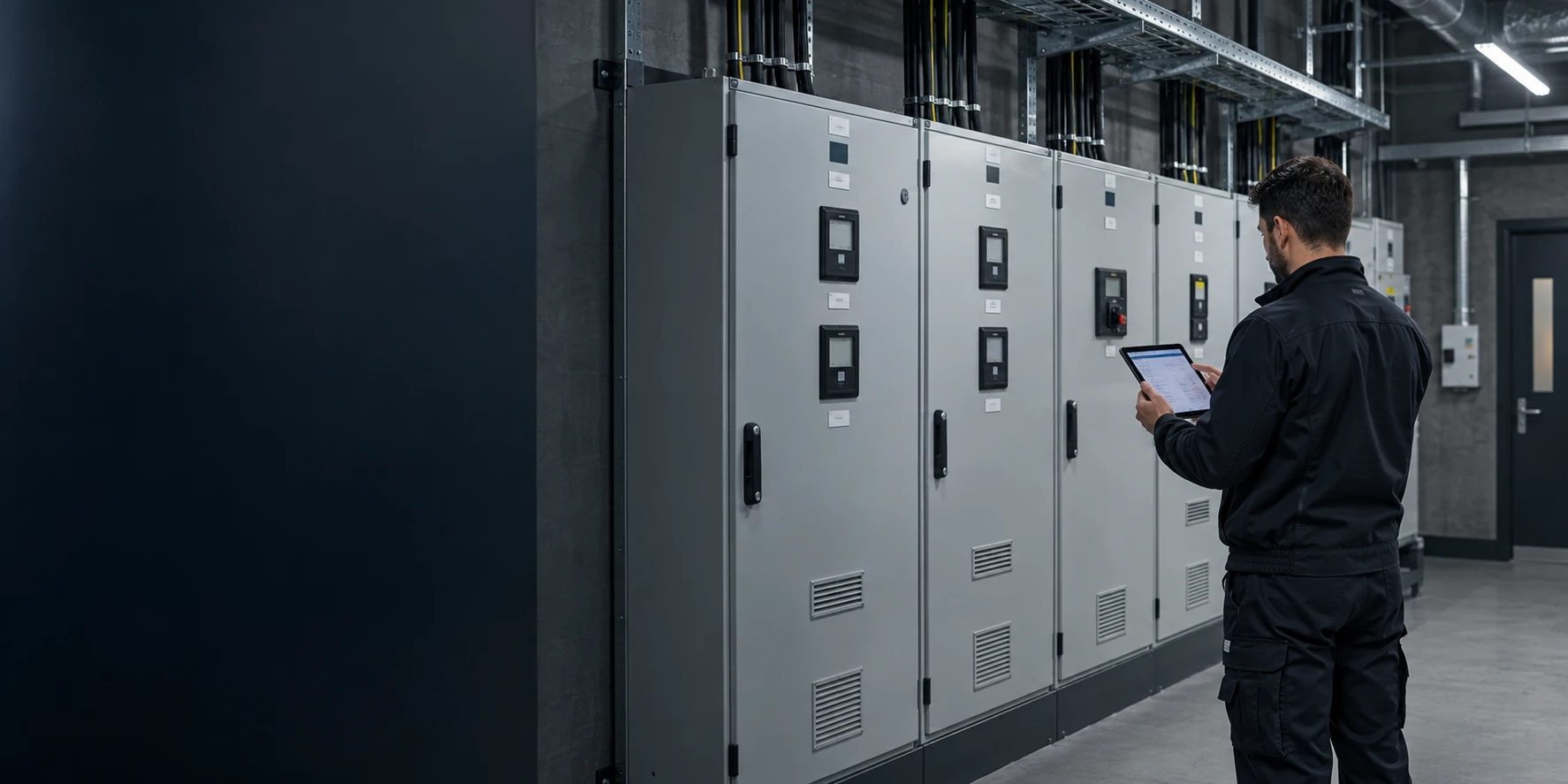

Tenant submetering and cost allocation
Meter each tenancy, the landlord supply and common services, and export a dated record that reconciles with the main meter. -

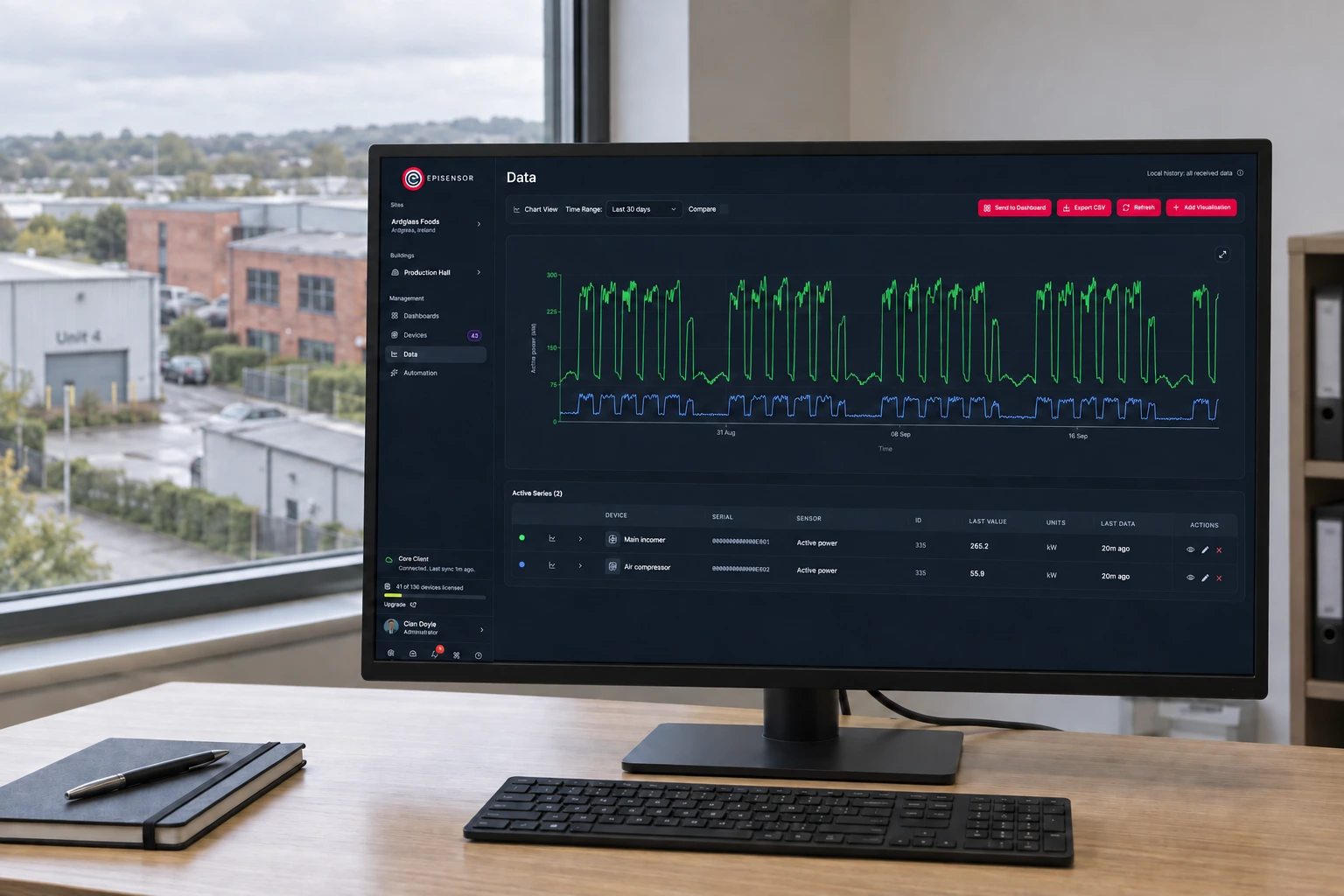

Multi-site energy monitoring
A Gateway on every site reads the meters that are already there, applies one point list, and keeps the readings when the connection drops.
More applications for this product
Questions engineers ask
Is this a Wireless M-Bus receiver?
Is this a Wireless M-Bus receiver?
No. The ZHM-21 is a wired M-Bus (EN 13757-2) master: it powers and polls one meter over a two-wire cable. The wireless part is its Zigbee link to the Gateway. It does not receive Wireless M-Bus (EN 13757-4) radio telegrams.
Which meters does it read?
Which meters does it read?
Wired M-Bus meters at 300 to 9,600 baud, including heat, water and energy meters from Kamstrup, Sontex, Itron, Diehl, Elster, Sensus and Landis+Gyr.
Can one ZHM read several meters?
Can one ZHM read several meters?
No. Each ZHM-21 reads one meter and has no pass-through. Fit one ZHM per meter; each is its own device on the mesh.
How long can the M-Bus cable be?
How long can the M-Bus cable be?
Up to 1,000 m to the meter, on the 2 m flying lead the ZHM-21 provides. Use a cable and baud rate that suit the run.
What can the valve relay switch?
What can the valve relay switch?
A valve actuator: one changeover contact rated 1 A at 250 V AC resistive. It is not for large electrical loads.
