Tuya · HVACTS0601_thermostat_5

Thermostatic radiator valve. Exposes an operating mode and a child lock with field calibration.

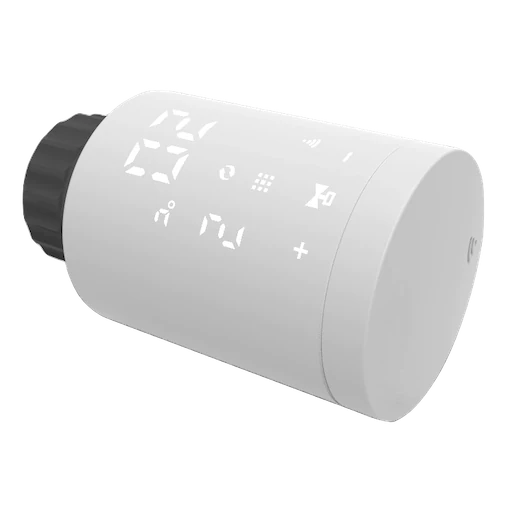

Tuya TS0601_thermostat_5 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
child_lock binary Read and write - -
battery_low binary Read - -
climate climate - - -
current_heating_setpoint numeric Read and write °C 5-35
local_temperature numeric Read °C -
system_mode enum Read and write - -
running_state enum Read - -
pi_heating_demand numeric Read % 0-100
local_temperature_calibration numeric Read and write °C -20-20
schedule_monday text Read and write - -
schedule_tuesday text Read and write - -
schedule_wednesday text Read and write - -
schedule_thursday text Read and write - -
schedule_friday text Read and write - -
schedule_saturday text Read and write - -
schedule_sunday text Read and write - -
scale_protection binary Read and write - -
frost_protection binary Read and write - -
error numeric Read - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tuya/TS0601_thermostat_5 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
