Tongou · MeteringTO-Q-SA1

Zigbee energy meter (transformer clamp). Reports voltage, current, power, cumulative energy, power factor and temperature.

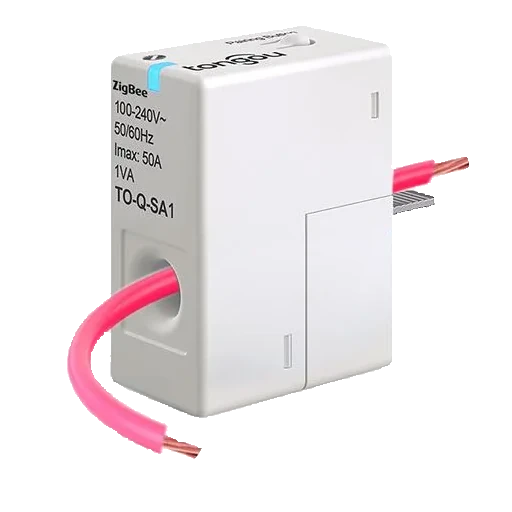

Tongou TO-Q-SA1 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
energy numeric Read kWh -
voltage numeric Read V -
current numeric Read A -
power numeric Read W -
ac_frequency numeric Read Hz -
power_factor numeric Read % -
temperature numeric Read °C -
event enum Read - -
over_current_setting enum Read and write - -
over_current_threshold numeric Read and write A 1-50
over_voltage_setting enum Read and write - -
over_voltage_threshold numeric Read and write V 240-295
under_voltage_setting enum Read and write - -
under_voltage_threshold numeric Read and write V 90-220
temperature_setting enum Read and write - -
temperature_threshold numeric Read and write °C -25-80
over_power_setting enum Read and write - -
over_power_threshold numeric Read and write W 1000-26000

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tongou/TO-Q-SA1 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
