Perenio · MeteringPEHPL0X

Power link. Exposes a switched output with signal strength.

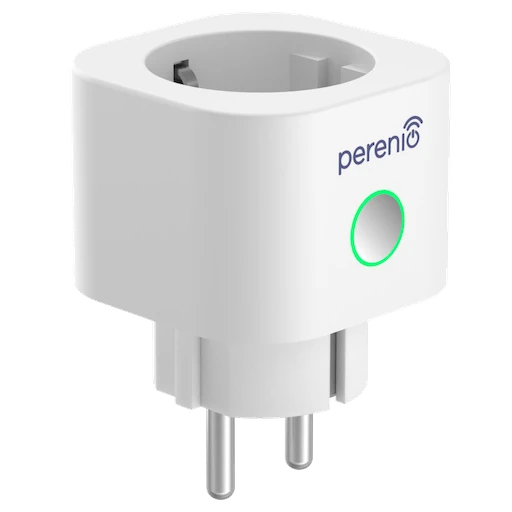

Perenio PEHPL0X device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch - - -
state binary Read and write - -
default_on_off_state enum Read and write - -
rms_voltage numeric Read V -
active_power numeric Read W -
consumed_energy numeric Read Wh -
alarm_voltage_min binary Read and write - -
alarm_voltage_max binary Read and write - -
alarm_power_max binary Read and write - -
alarm_consumed_energy binary Read and write - -
voltage_min numeric Read and write - 0-253
voltage_max numeric Read and write - 0-253
power_max numeric Read and write - 0-65534
consumed_energy_limit numeric Read and write - 0-65534
rssi numeric Read dB -128-127

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Perenio/PEHPL0X (opens in a new tab) zigbee-herdsman-converters · v26.111.0
