Namron · Metering4566702

Zigbee Edge Thermostat. Reports current, power, cumulative energy and humidity, and exposes a switched output, a heating setpoint and an operating mode with field calibration.

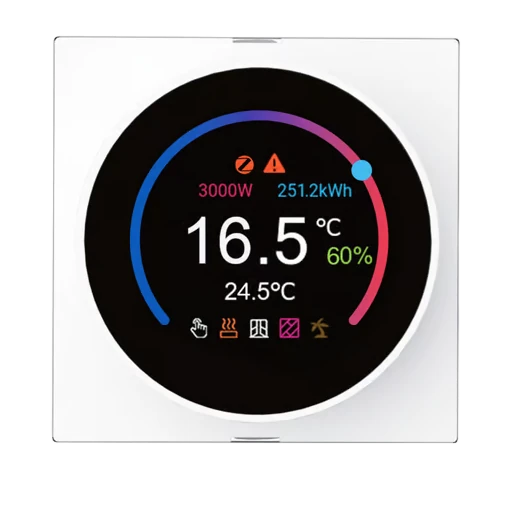

Namron 4566702 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
climate climate — — —
local_temperature numeric Read °C —
occupied_heating_setpoint numeric Read and write °C 5–35
system_mode enum Read and write — —
running_state enum Read — —
local_temperature_calibration numeric Read and write °C -3–3
pi_heating_demand numeric Read % 0–100
occupied_cooling_setpoint numeric Read and write °C 10–40
programming_operation_mode enum Read and write — —
thermostat_mode enum Read — —
sensor_mode enum Read and write — —
regulator_percentage numeric Read and write % 0–100
regulator_cycle numeric Read and write min 1–30
frost binary Read and write — —
window_open_check binary Read and write — —
window_state enum Read — —
keypad_lockout binary Read and write — —
temperature_display_mode enum Read and write — —
panel_brightness numeric Read and write % 1–100
screen_on_time enum Read and write — —
countdown_set numeric Read and write min 0–120
countdown_left numeric Read min —
vacation_mode binary Read and write — —
vacation_start text Read and write — —
vacation_end text Read and write — —
holiday_temp_set numeric Read and write °C 5–40
holiday_temp_set_f numeric Read and write °F 41–104
max_heat_temp numeric Read and write °C 15–35
max_heat_temp_f numeric Read and write °F 59–95
min_cool_temp numeric Read and write °C 10–30
min_cool_temp_f numeric Read and write °F 50–86
auto_time binary Read and write — —
sync_time enum Write — —
clock_last_synced text Read — —
fault text Read — —
firmware_version text Read — —
firmware_date text Read — —
min_heat_setpoint_limit numeric Read °C —
max_heat_setpoint_limit numeric Read °C —
min_cool_setpoint_limit numeric Read °C —
max_cool_setpoint_limit numeric Read °C —
min_heat_setpoint_limit_f numeric Read °F —
max_heat_setpoint_limit_f numeric Read °F —
min_cool_setpoint_limit_f numeric Read °F —
max_cool_setpoint_limit_f numeric Read °F —
occupied_heating_setpoint_f numeric Read °F —
occupied_cooling_setpoint_f numeric Read °F —
local_temperature_f numeric Read °F —
switch switch — — —
state binary Read and write — —
humidity numeric Read % —
power numeric Read W —
current numeric Read A —
energy numeric Read kWh —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Namron/4566702 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
