SONOFF · ControlMINI-ZB2GS-L

Zigbee dual-channel smart switch. Exposes a switched output.

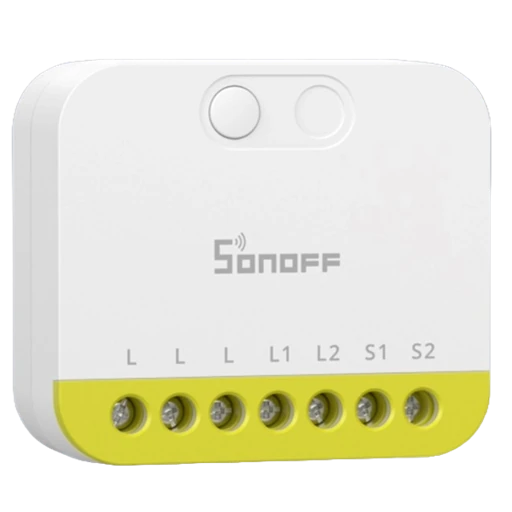

SONOFF MINI-ZB2GS-L device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch - - -
state_l1 binary Read and write - -
state_l2 binary Read and write - -
power_on_behavior_l1 enum Read and write - -
power_on_behavior_l2 enum Read and write - -
external_trigger_mode_l1 enum Read and write - -
external_trigger_mode_l2 enum Read and write - -
detach_relay_mode composite Read and write - -
detach_relay_outlet1 binary Write - -
detach_relay_outlet2 binary Write - -
delayed_power_on_state_channel_1_l1 binary Read and write - -
delayed_power_on_state_channel_2_l2 binary Read and write - -
delayed_power_on_time_l1 numeric Read and write seconds 0.5-3599.5
delayed_power_on_time_l2 numeric Read and write seconds 0.5-3599.5
action enum Read - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. SONOFF/MINI-ZB2GS-L (opens in a new tab) zigbee-herdsman-converters · v26.111.0
