SONOFF · ControlMINI-ZB2GS

Zigbee dual-channel smart switch. Exposes a switched output.

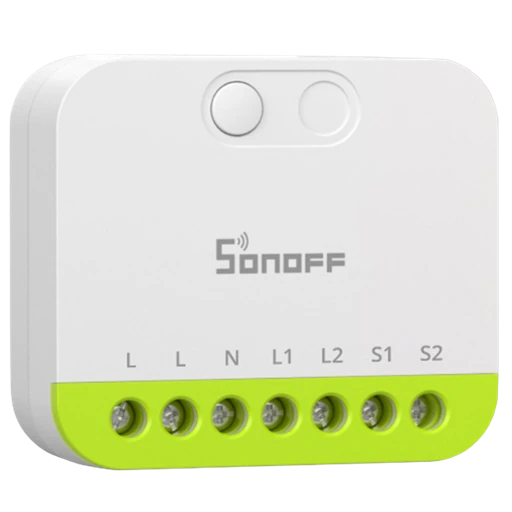

SONOFF MINI-ZB2GS device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch — — —
state_l1 binary Read and write — —
state_l2 binary Read and write — —
power_on_behavior_l1 enum Read and write — —
power_on_behavior_l2 enum Read and write — —
external_trigger_mode_l1 enum Read and write — —
external_trigger_mode_l2 enum Read and write — —
detach_relay_mode composite Read and write — —
detach_relay_outlet1 binary Write — —
detach_relay_outlet2 binary Write — —
inching_control_set_l1 composite Write — —
inching_control_l1 binary Write — —
inching_time_l1 numeric Write seconds 0.5–3599.5
inching_mode_l1 binary Write — —
inching_control_set_l2 composite Write — —
inching_control_l2 binary Write — —
inching_time_l2 numeric Write seconds 0.5–3599.5
inching_mode_l2 binary Write — —
network_indicator binary Read and write — —
turbo_mode binary Read and write — —
delayed_power_on_state_channel_1_l1 binary Read and write — —
delayed_power_on_state_channel_2_l2 binary Read and write — —
delayed_power_on_time_l1 numeric Read and write seconds 0.5–3599.5
delayed_power_on_time_l2 numeric Read and write seconds 0.5–3599.5
programmable_stepper_seq1 composite Read and write — —
enable_stepper binary Read and write — —
switch_outlet numeric Read and write — 1–2
enable_double_press binary Read and write — —
double_press_interval numeric Read and write ms 0–32767
step_1 composite Read and write — —
enable_step binary Read and write — —
relay_outlet_1 binary Read and write — —
relay_outlet_2 binary Read and write — —
step_2 composite Read and write — —
step_3 composite Read and write — —
step_4 composite Read and write — —
programmable_stepper_seq2 composite Read and write — —
programmable_stepper_seq3 composite Read and write — —
programmable_stepper_seq4 composite Read and write — —
action enum Read — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. SONOFF/MINI-ZB2GS (opens in a new tab) zigbee-herdsman-converters · v26.111.0
