EFEKTA · EnvironmentalEFEKTA_Smart_AQ_Box_R3

EFEKTA Smart Air Quality Box, can control the relay, binding on some other devices. Reports temperature, humidity, CO₂, pressure and particulates with field calibration.

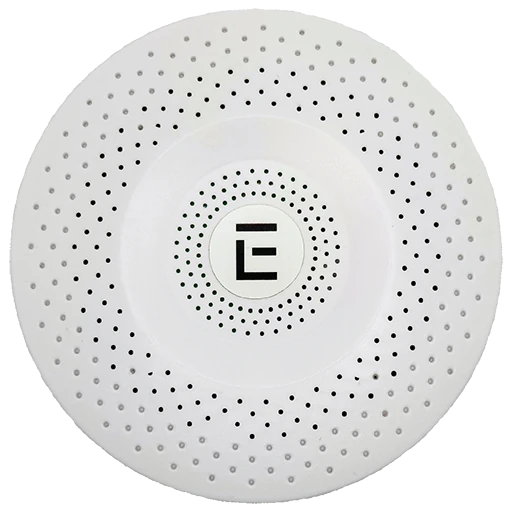

EFEKTA EFEKTA_Smart_AQ_Box_R3 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
co2 numeric Read ppm —
pm1 numeric Read µg/m³ —
pm25 numeric Read µg/m³ —
pm4 numeric Read µg/m³ —
pm10 numeric Read µg/m³ —
pm_size numeric Read µm —
aqi_25_index numeric Read PM2.5 Index —
voc_index numeric Read VOC Index points —
pressure numeric Read kPa —
temperature numeric Read °C —
humidity numeric Read % —
reading_delay numeric Read and write sec 6–600
alarm binary Read and write — —
light_indicator binary Read and write — —
light_indicator_level numeric Read and write % 0–100
temperature_offset numeric Read and write °C -50–50
humidity_offset numeric Read and write % -50–50
auto_clean_interval numeric Read and write day 0–10
manual_clean binary Read and write — —
forced_recalibration binary Read and write — —
manual_forced_recalibration numeric Read and write ppm 0–5000
automatic_self_calibration binary Read and write — —
factory_reset_co2 binary Read and write — —
enable_pm25 binary Read and write — —
high_pm25 numeric Read and write µg/m³ 0–1000
low_pm25 numeric Read and write µg/m³ 0–1000
enable_co2_gas binary Read and write — —
high_co2_gas numeric Read and write ppm 400–5000
low_co2_gas numeric Read and write ppm 400–5000
enable_voc binary Read and write — —
high_voc numeric Read and write VOC Index points 0–500
low_voc numeric Read and write VOC Index points 0–500

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. EFEKTA/EFEKTA_Smart_AQ_Box_R3 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
