YOKIS · ControlMTR1300E-UP

Remote power switch with timer 1300W. Exposes a switched output.

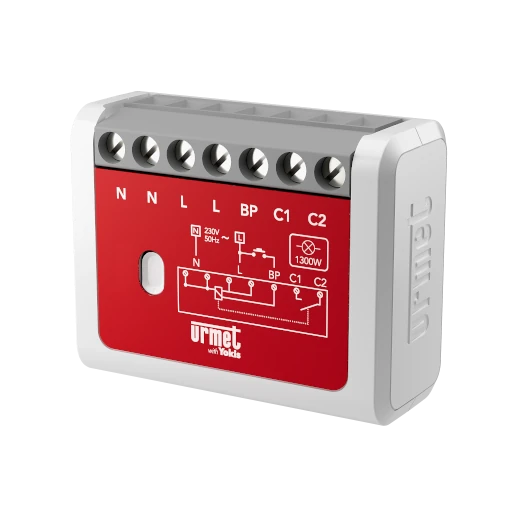

YOKIS MTR1300E-UP device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch — — —
state binary Read and write — —
identify enum Write — —
power_failure_mode enum Read and write — —
prev_state binary Read — —
on_timer numeric Read and write s 0–3600
enable_pre_on_delay binary Read and write — —
pre_on_delay numeric Read and write s 0–3600
enable_pre_off_delay binary Read and write — —
pre_off_delay numeric Read and write s 0–3600
pulse_duration numeric Read and write ms 20–65534
time_type enum Read and write — —
long_on_duration numeric Read and write s 0–4233600
operating_mode enum Read and write — —
enable_stop_announce binary Read and write — —
stop_announce_time numeric Read and write s 0–4233600
enable_deaf binary Read and write — —
deaf_blink_amount numeric Read and write — 0–20
deaf_blink_time numeric Read and write — 100–20000
enable_blink binary Read and write — —
blink_amount numeric Read and write — 0–20
blink_on_time numeric Read and write — 0–4233600
blink_off_time numeric Read and write — 0–4233600
state_after_blink enum Read and write — —
enable_nc_command binary Read and write — —
move_to_position_prop composite Write — —
brightness_start numeric Write — —
brightness_end numeric Write — —
pre_timer_value numeric Write s —
enable_pre_timer binary Write — —
timer_value numeric Write s —
enable_timer binary Write — —
transition_time numeric Write — —
pulse_prop composite Write — —
pulse_length numeric Write ms ≤ 65535
blink_prop composite Write — —
blink_amount numeric Write — —
blink_on_period numeric Write — —
blink_off_period numeric Write — —
state_after_sequence enum Write — —
do_periodic_cycle binary Write — —
deaf_blink_prop composite Write — —
blink_on_time numeric Write — —
sequence_amount numeric Read — 0–6
sequence_of_blinks list Write — —
long_on_command enum Write — —
reset_to_factory_settings enum Write — —
relaunch_ble_advert enum Write — —
input_mode enum Read and write — —
contact_mode enum Read and write — —
last_local_command_state binary Read — —
last_bp_connect_state binary Read — —
send_press enum Write — —
send_release enum Write — —
select_input_mode enum Write — —
enable_short_press binary Read and write — —
enable_long_press binary Read and write — —
long_press_duration numeric Read and write ms 0–5000
time_between_press numeric Read and write ms 100–600
enable_R12M_long_press binary Read and write — —
enable_local_config_lock binary Read and write — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. YOKIS/MTR1300E-UP (opens in a new tab) zigbee-herdsman-converters · v26.111.0
