Sunricher · HVACSR-ZG9095B

Touch thermostat. Exposes a heating setpoint, an operating mode, a fan mode and a child lock with field calibration.

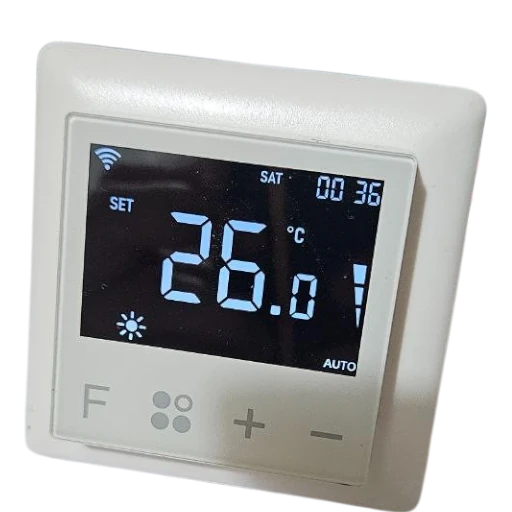

Sunricher SR-ZG9095B device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
outdoor_temperature numeric Read °C —
climate climate — — —
occupied_heating_setpoint numeric Read and write °C 5–32
unoccupied_heating_setpoint numeric Read and write °C 5–32
occupied_cooling_setpoint numeric Read and write °C 5–32
unoccupied_cooling_setpoint numeric Read and write °C 5–32
local_temperature numeric Read °C —
local_temperature_calibration numeric Read and write °C -2.5–2.5
system_mode enum Read and write — —
running_state enum Read — —
fan_mode enum Read and write — —
control_sequence_of_operation enum Read — —
away_mode binary Read and write — —
child_lock binary Read and write — —
lcd_brightness enum Read and write — —
button_vibration_level enum Read and write — —
floor_sensor_type enum Read and write — —
sensor enum Read and write — —
powerup_status enum Read and write — —
floor_sensor_calibration numeric Read and write °C -2.5–2.5
temperature_display enum Read and write — —
min_setpoint_deadband numeric Read and write °C 1–1.5

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Sunricher/SR-ZG9095B (opens in a new tab) zigbee-herdsman-converters · v26.111.0
