Tervix · HVAC_TZE284_6kijc7nd

Tervix Zigbee thermostat. Reports humidity, and exposes an operating mode and a child lock.

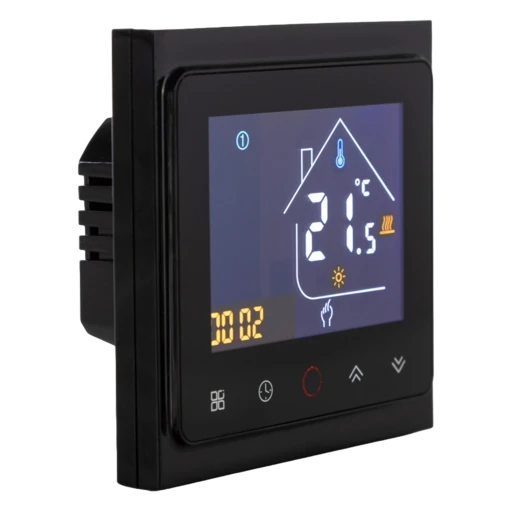

Tervix _TZE284_6kijc7nd device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
climate climate — — —
current_heating_setpoint numeric Read and write °C 5–35
local_temperature numeric Read °C —
system_mode enum Read and write — —
running_state enum Read — —
mode enum Read and write — —
run_mode enum Read and write — —
week_program_periods enum Read — —
factory_reset binary Read and write — —
child_lock binary Read and write — —
window_state enum Read — —
working_status enum Read — —
window_check binary Read and write — —
frost_protection binary Read and write — —
sensor_choose enum Read and write — —
humidity_control binary Read and write — —
humidity numeric Read % —
week_schedule text Read and write — —
window_open_detection_time numeric Read and write min 2–30
window_open_detection_temp numeric Read and write °C 2–4
window_open_delay_time numeric Read and write min 10–60
upper_temp numeric Read and write °C 35–95
temperature_correction numeric Read and write °C -9–9
switch_sensitivity numeric Read and write °C 0.5–5
floor_temp_protection numeric Read and write °C 5–60
floor_low_protection numeric Read and write °C 10–30

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tervix/_TZE284_6kijc7nd (opens in a new tab) zigbee-herdsman-converters · v26.111.0
