Lytko · HVACL101Ze-DLN

Dual channel thermostat without display.

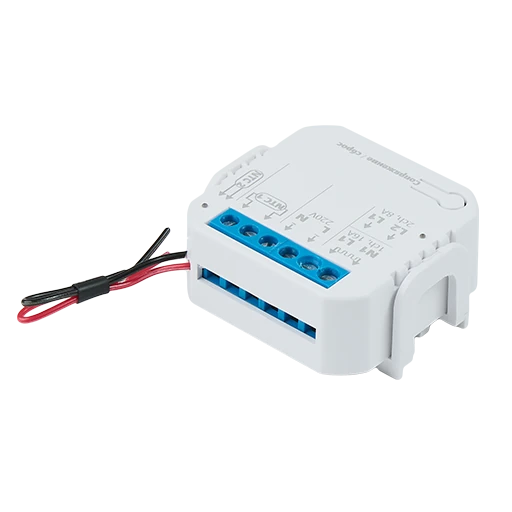

Lytko L101Ze-DLN device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
climate climate - - -
local_temperature_3 numeric Read °C -
local_temperature_calibration_3 numeric Read and write °C -2.5-2.5
occupied_heating_setpoint_3 numeric Read and write °C 5-40
system_mode_3 enum Read and write - -
running_mode_3 enum Read - -
local_temperature_4 numeric Read °C -
local_temperature_calibration_4 numeric Read and write °C -2.5-2.5
occupied_heating_setpoint_4 numeric Read and write °C 5-40
system_mode_4 enum Read and write - -
running_mode_4 enum Read - -
identify enum Write - -
occupied_setback_3 numeric Read and write °C 1-2.5
occupied_setback_4 numeric Read and write °C 1-2.5
remote_sensing_3 enum Read and write - -
remote_sensing_4 enum Read and write - -
sensor_type_3 enum Read and write - -
sensor_type_4 enum Read and write - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Lytko/L101Ze-DLN (opens in a new tab) zigbee-herdsman-converters · v26.111.0
