Sber · ControlSBDV-00197

Smart Wall Switch (optional neutral wire, single button). Exposes a switched output, a child lock and power-on behaviour.

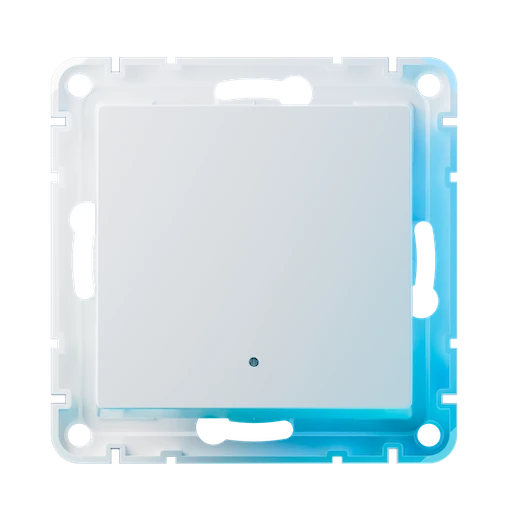

Sber SBDV-00197 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
allow_double_click binary Read and write — —
led_indicator_on_enable binary Read and write — —
led_indicator_on_h numeric Read and write ° 0–359
led_indicator_on_s numeric Read and write — 0–254
led_indicator_on_b numeric Read and write — 1–254
led_indicator_off_enable binary Read and write — —
led_indicator_off_h numeric Read and write ° 0–359
led_indicator_off_s numeric Read and write — 0–254
led_indicator_off_b numeric Read and write — 1–254
identify enum Write — —
switch switch — — —
state binary Read and write — —
power_on_behavior enum Read and write — —
relay_mode enum Read and write — —
child_lock binary Read and write — —
serial_number text Read — —
neutral_presence binary Read — —
power_profile enum Read and write — —
led_indication_type enum Read and write — —
resets_count numeric Read — —
uptime numeric Read s —
button_clicks_count_1 numeric Read — —
button_clicks_count_2 numeric Read — —
relay_switches_count_1 numeric Read — —
action enum Read — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Sber/SBDV-00197 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
