Nova Digital · ControlTO-6 W/B

Topazio 6 gang Zigbee wall switch. Exposes a switched output and power-on behaviour.

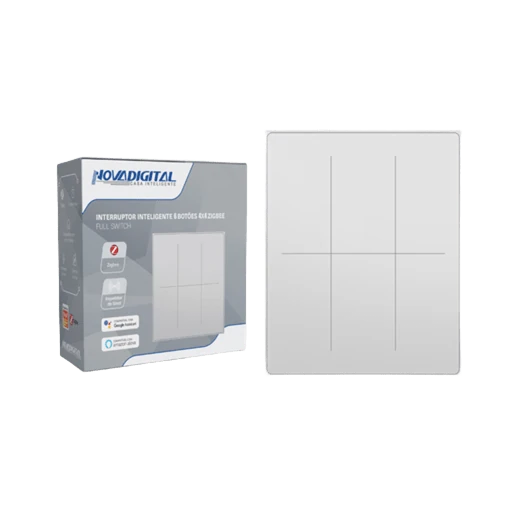

Nova Digital TO-6 W/B device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch — — —
state_l1 binary Read and write — —
state_l2 binary Read and write — —
state_l3 binary Read and write — —
state_l4 binary Read and write — —
state_l5 binary Read and write — —
state_l6 binary Read and write — —
backlight_mode binary Read and write — —
indicator_status enum Read and write — —
power_on_behavior enum Read and write — —
induction binary Read and write — —
vibration_gear enum Read and write — —
mode_1 enum Read and write — —
mode_2 enum Read and write — —
mode_3 enum Read and write — —
mode_4 enum Read and write — —
mode_5 enum Read and write — —
mode_6 enum Read and write — —
countdown_l1 numeric Read and write s 0–43200
countdown_l2 numeric Read and write s 0–43200
countdown_l3 numeric Read and write s 0–43200
countdown_l4 numeric Read and write s 0–43200
countdown_l5 numeric Read and write s 0–43200
countdown_l6 numeric Read and write s 0–43200
inching_l1 numeric Read and write s 0–3600
inching_l2 numeric Read and write s 0–3600
inching_l3 numeric Read and write s 0–3600
inching_l4 numeric Read and write s 0–3600
inching_l5 numeric Read and write s 0–3600
inching_l6 numeric Read and write s 0–3600
action enum Read — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Nova Digital/TO-6 W/B (opens in a new tab) zigbee-herdsman-converters · v26.111.0
