Tuya · MeteringZBN-DJ-63

Smart circuit breaker. Reports voltage, current, power, cumulative energy and temperature, and exposes a switched output.

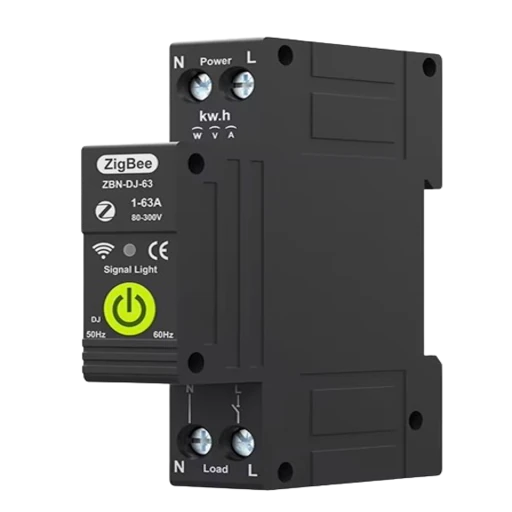

Tuya ZBN-DJ-63 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch — — —
state binary Read and write — —
energy numeric Read kWh —
reverse_energy numeric Read kWh —
power numeric Read W —
voltage numeric Read V —
current numeric Read A —
temperature numeric Read °C —
switch_prepayment binary Read and write — —
clear_energy binary Write — —
balance_energy numeric Read kWh —
charge_energy numeric Write kWh 0–999999
over_current_breaker binary Read and write — —
over_current_threshold numeric Read and write A 10–63
over_voltage_breaker binary Read and write — —
over_voltage_threshold numeric Read and write V 240–260
under_voltage_breaker binary Read and write — —
under_voltage_threshold numeric Read and write V 195–220
leakage_current numeric Read mA —
leakage_breaker binary Read and write — —
leakage_delay numeric Read and write s 1–9999
leakage_threshold numeric Read and write mA 10–99
high_temperature_breaker binary Read and write — —
high_temperature_threshold numeric Read and write °C 10–85
countdown numeric Read and write s 0–43200
power_on_delay numeric Read and write s 1–9999
recover_count numeric Read and write — 0–999
recover_enable binary Read and write — —
fault enum Read — —
relay_power_on_state enum Read and write — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tuya/ZBN-DJ-63 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
