Tuya · HVACTS0601_thermostat

Radiator valve with thermostat. Exposes a switched output, valve position, an operating mode and a child lock with field calibration.

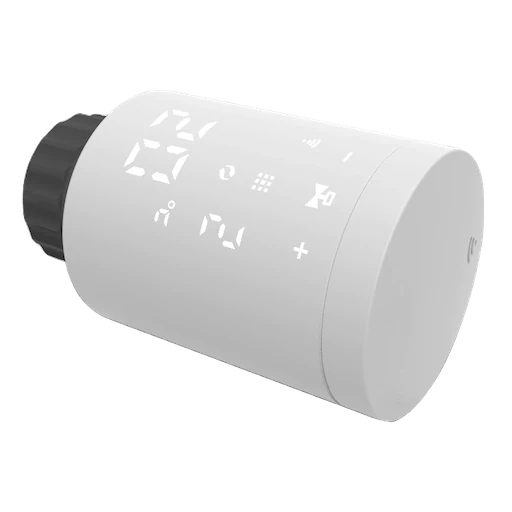

Tuya TS0601_thermostat device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
child_lock binary Read and write — —
switch switch — — —
window_detection binary Read and write — —
window_open binary Read — —
battery_low binary Read — —
valve_detection binary Read and write — —
position numeric Read % —
climate climate — — —
current_heating_setpoint numeric Read and write °C 5–35
local_temperature numeric Read °C —
system_mode enum Read and write — —
local_temperature_calibration numeric Read and write °C -9–9
preset enum Read and write — —
running_state enum Read — —
auto_lock binary Read and write — —
away_mode binary Read and write — —
away_preset_days numeric Read and write — 0–100
boost_time numeric Read and write s 0–900
comfort_temperature numeric Read and write °C 0–30
eco_temperature numeric Read and write °C 0–35
force enum Read and write — —
max_temperature numeric Read and write °C 16–70
min_temperature numeric Read and write °C 1–15
away_preset_temperature numeric Read and write °C -10–35
week enum Read and write — —
workdays_schedule text Read and write — —
holidays_schedule text Read and write — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tuya/TS0601_thermostat (opens in a new tab) zigbee-herdsman-converters · v26.111.0
