Tuya · ControlMTG075-ZB-RL

2.4G/5.8G human presence sensor with relay. Reports light level.

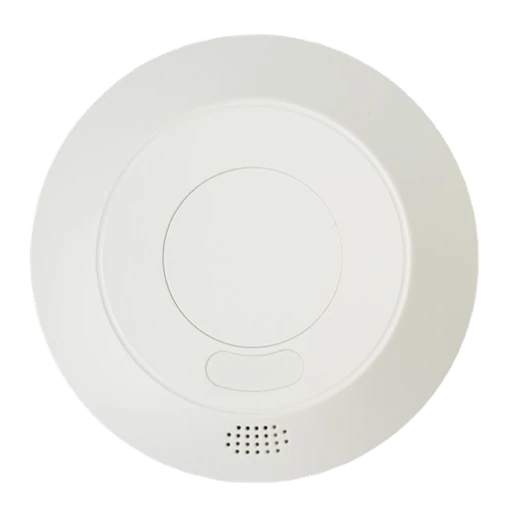

Tuya MTG075-ZB-RL device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
presence binary Read - -
illuminance numeric Read lx -
target_distance numeric Read m -
radar_sensitivity numeric Read and write - 0-9
detection_range numeric Read and write m 0-8
shield_range numeric Read and write m 0-8
entry_sensitivity numeric Read and write - 0-9
entry_distance_indentation numeric Read and write m 0-8
entry_filter_time numeric Read and write s 0-10
departure_delay numeric Read and write s 0-600
block_time numeric Read and write s 0-10
breaker_status binary Read and write - -
breaker_mode enum Read and write - -
illuminance_threshold numeric Read and write lx 0-420
status_indication enum Read and write - -
sensor enum Read and write - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tuya/MTG075-ZB-RL (opens in a new tab) zigbee-herdsman-converters · v26.111.0
