Tuya · MeteringDS-1450WN

Smart Zigbee Switch with power monitoring. Reports voltage, current and power, and exposes a switched output and a child lock.

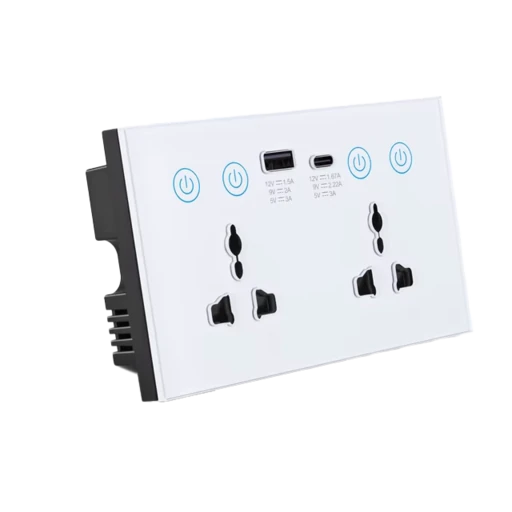

Tuya DS-1450WN device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
switch switch - - -
state_usb_a binary Read and write - -
state_usb_c binary Read and write - -
state_plug_1 binary Read and write - -
state_plug_2 binary Read and write - -
countdown_usb_a numeric Read and write s 0-86400
countdown_usb_c numeric Read and write s 0-86400
countdown_plug_1 numeric Read and write s 0-86400
countdown_plug_2 numeric Read and write s 0-86400
relay_status enum Read and write - -
switch_backlight binary Read and write - -
current numeric Read A -
power numeric Read W -
voltage numeric Read V -
produced_energy numeric Read kWh -
child_lock binary Read and write - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Tuya/DS-1450WN (opens in a new tab) zigbee-herdsman-converters · v26.111.0
