Sprut.device · ControlBed.box

Sprut bed.box ergomotion controller. Exposes a switched output.

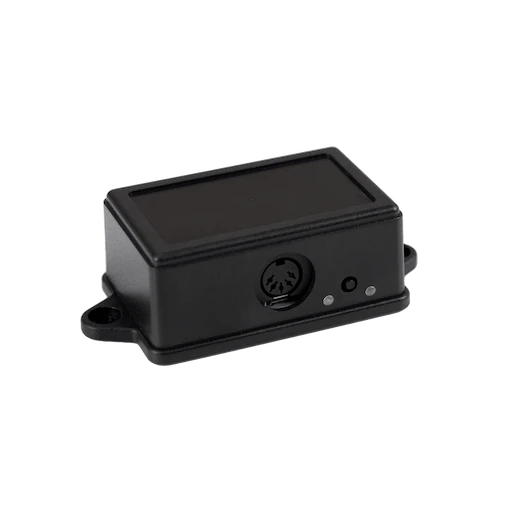

Sprut.device Bed.box device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
head_position_head_control numeric Read and write % 0–100
foot_position_foot_control numeric Read and write % 0–100
current_head_position_head_feedback numeric Read % —
current_foot_position_foot_feedback numeric Read % —
head_massage_intensity_head_massage_intensity enum Read and write — —
foot_massage_intensity_foot_massage_intensity enum Read and write — —
massage_duration_massage_duration enum Read and write — —
switch switch — — —
state_light binary Read and write — —
state_flat binary Read and write — —
state_zero_gravity binary Read and write — —
state_reading binary Read and write — —
state_tv binary Read and write — —
state_clear_angles_settings binary Read and write — —
state_massage binary Read and write — —
state_anti_snoring binary Read and write — —
state_move binary Read and write — —
state_stop binary Read and write — —

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Sprut.device/Bed.box (opens in a new tab) zigbee-herdsman-converters · v26.111.0
