Moes · HVACZHT-SR

Smart ring thermostat. Exposes an operating mode and a child lock with field calibration.

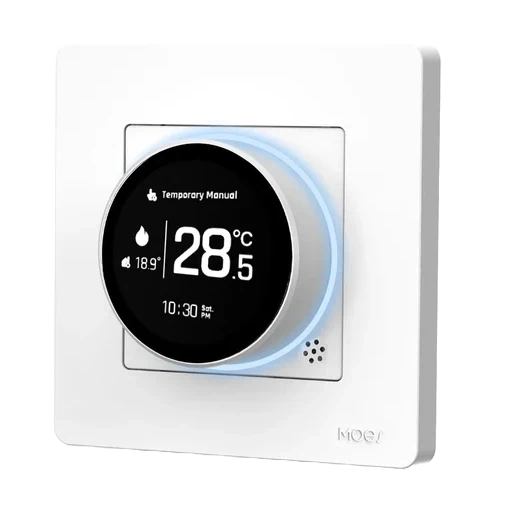

Moes ZHT-SR device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
climate climate - - -
current_heating_setpoint numeric Read and write °C 5-45
local_temperature numeric Read °C -
local_temperature_calibration numeric Read and write °C -10-10
system_mode enum Read and write - -
running_state enum Read - -
preset enum Read and write - -
eco_temperature numeric Read and write °C 10-30
child_lock binary Read and write - -
deadzone_temperature numeric Read and write °C 0.5-5
max_temperature_limit numeric Read and write °C 35-45
min_temperature_limit numeric Read and write °C 1-15
sensor_mode enum Read - -
floor_temperature numeric Read °C -
high_protect_temperature numeric Read and write °C 10-70
low_protect_temperature numeric Read and write °C 0-10
backlight_brightness numeric Read and write % 0-100
screen_time enum Read and write - -
rgb_light binary Read and write - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Moes/ZHT-SR (opens in a new tab) zigbee-herdsman-converters · v26.111.0
