EFEKTA · MeteringEFEKTA_TH_v2

Temperature and humidity sensors. Simple Thermostat. Reports temperature and humidity with battery level.

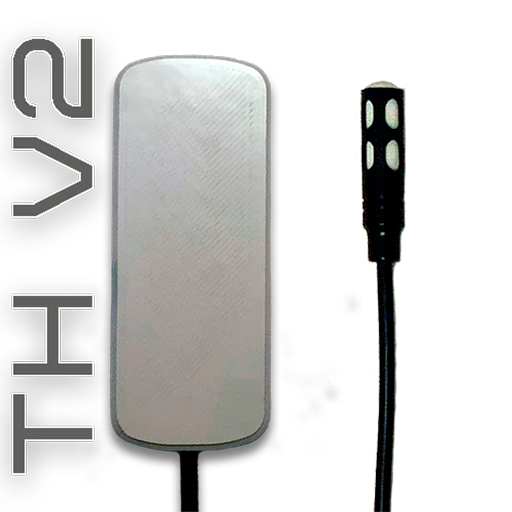

EFEKTA EFEKTA_TH_v2 device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
identify enum Write - -
temperature numeric Read °C -
humidity numeric Read % -
battery numeric Read % 0-100
voltage numeric Read mV -
battery_low binary Read - -
reading_interval numeric Read and write sec 10-360
smart_sleep binary Read and write - -
uptime numeric Read Hours -
config_report_enable binary Read and write - -
comparison_previous_data binary Read and write - -
enabling_temperature_control binary Read and write - -
temperature_actions enum Read and write - -
high_temperature numeric Read and write °C -40-90
low_temperature numeric Read and write °C -40-90
enabling_humidity_control binary Read and write - -
humidity_actions enum Read and write - -
high_humidity numeric Read and write % 0-99
low_humidity numeric Read and write % 0-99

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. EFEKTA/EFEKTA_TH_v2 (opens in a new tab) zigbee-herdsman-converters · v26.111.0
