EFEKTA · EnvironmentalEFEKTA_Pixel_Open_Air

CO2 Monitor with retro LCD Display, V1. Reports temperature, humidity and CO₂.

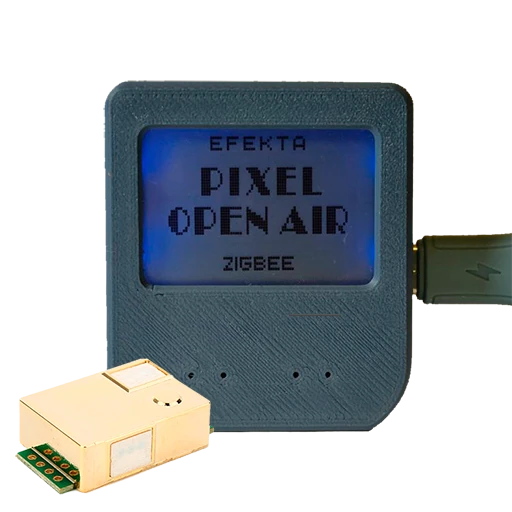

EFEKTA EFEKTA_Pixel_Open_Air device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
identify enum Write - -
co2 numeric Read ppm -
temperature numeric Read °C -
humidity numeric Read % -
backlight binary Read and write - -
night_onoff_backlight binary Read and write - -
night_on_backlight numeric Read and write Hr 0-23
night_off_backlight numeric Read and write Hr 0-23
contrast numeric Read and write - 0-40
temperature_offset numeric Read and write °C -50-50
humidity_offset numeric Read and write % -50-50
automatic_calibrations binary Read and write - -
forced_recalibration_on_air binary Read and write - -
co2_error_read numeric Read - -
enable_gas binary Read and write - -
invert_logic_gas binary Read and write - -
high_gas numeric Read and write ppm 400-5000
low_gas numeric Read and write ppm 400-5000

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. EFEKTA/EFEKTA_Pixel_Open_Air (opens in a new tab) zigbee-herdsman-converters · v26.111.0
