EFEKTA · EnvironmentalEFEKTA_AQ_Smart_Monitor

EFEKTA CO2 & VOC Index Smart Monitor, rgb indicator, can control the relay, binding. Reports temperature, humidity and CO₂.

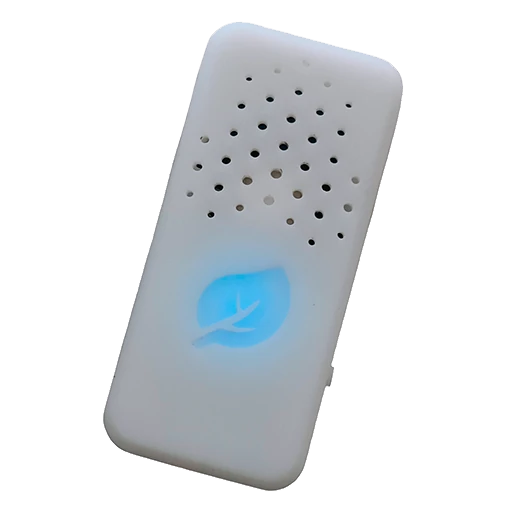

EFEKTA EFEKTA_AQ_Smart_Monitor device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
co2 numeric Read ppm —
temperature numeric Read °C —
humidity numeric Read % —
voc_index numeric Read VOC Index points —
reading_interval numeric Read and write seconds 15–300
light_indicator binary Read and write — —
light_indicator_level numeric Read and write % 0–100
set_altitude numeric Read and write meters 0–3000
temperature_offset numeric Read and write °C -50–50
humidity_offset numeric Read and write % -50–50
automatic_calibrations binary Read and write — —
forced_recalibration binary Read and write — —
factory_reset_co2 binary Read and write — —
manual_forced_recalibration numeric Read and write ppm 0–5000
enable_co2_gas binary Read and write — —
high_co2_gas numeric Read and write ppm 400–5000
low_co2_gas numeric Read and write ppm 400–5000
enable_voc binary Read and write — —
high_voc numeric Read and write VOC Index points 0–500
low_voc numeric Read and write VOC Index points 0–500

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. EFEKTA/EFEKTA_AQ_Smart_Monitor (opens in a new tab) zigbee-herdsman-converters · v26.111.0
