Custom devices (DiY) · HVACACW02-ZB

ACW02 HVAC Thermostat Controller via Zigbee (Router). Exposes a switched output, a heating setpoint, an operating mode and a fan mode.

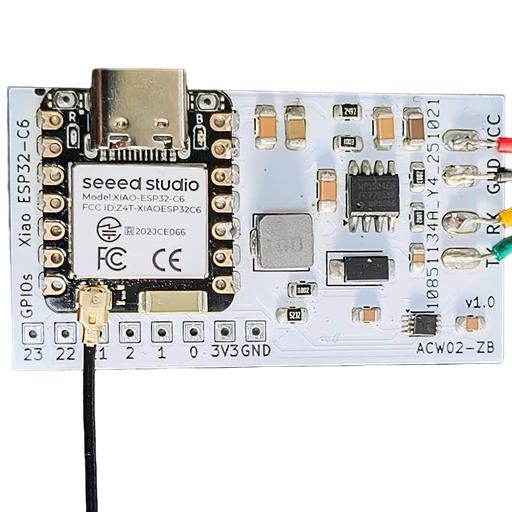

Custom devices (DiY) ACW02-ZB device photograph
Photograph: Zigbee2MQTT (GPL-3.0)

Connection

EpiSensor Gateway with Zigbee radio running Edge

Documented Zigbee support describes the path Edge would use. It is not an EpiSensor compatibility claim for this model.

Readings and controls

What the pinned upstream definition exposes for this exact model. Units and ranges are only shown when that source states them.

Swipe to see every column

Download
Name Type Access Unit Range
climate climate - - -
occupied_heating_setpoint numeric Read and write °C 16-31
local_temperature numeric Read °C -
system_mode enum Read and write - -
running_state enum Read - -
error_text text Read - -
ac_error_status binary Read - -
switch switch - - -
state_eco_mode binary Read and write - -
state_swing_mode binary Read and write - -
state_display binary Read and write - -
state_night_mode binary Read and write - -
state_purifier binary Read and write - -
filter_clean_status binary Read - -
state_mute binary Read and write - -
fan_mode enum Read and write - -

Commissioning

A live socket is not a live measurement. Prove the decode, then keep the map.

  1. Pair the device on the Gateway Zigbee radio in Edge.

  2. Confirm the reported manufacturer and model match this page.

  3. Prove one known reading or control before enabling the rest of the points.

Sources

  1. Custom devices (DiY)/ACW02-ZB (opens in a new tab) zigbee-herdsman-converters · v26.111.0
